Product Overview

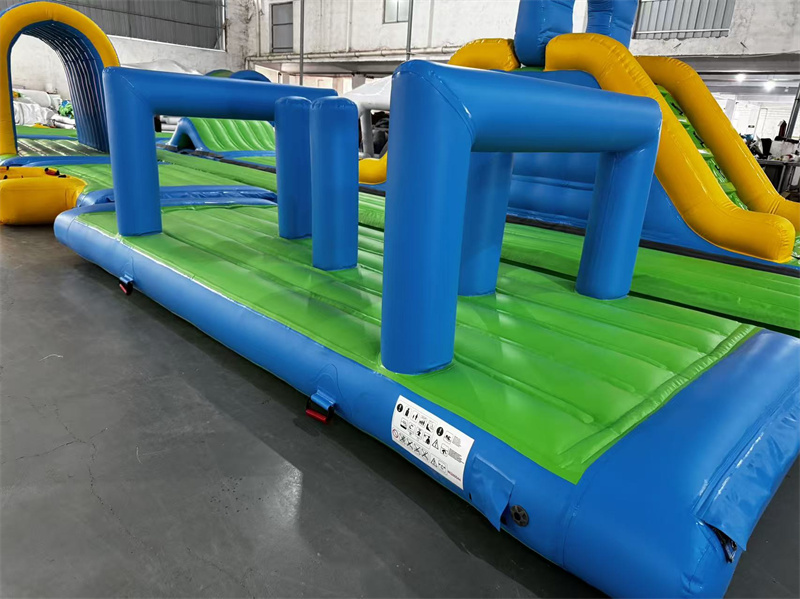

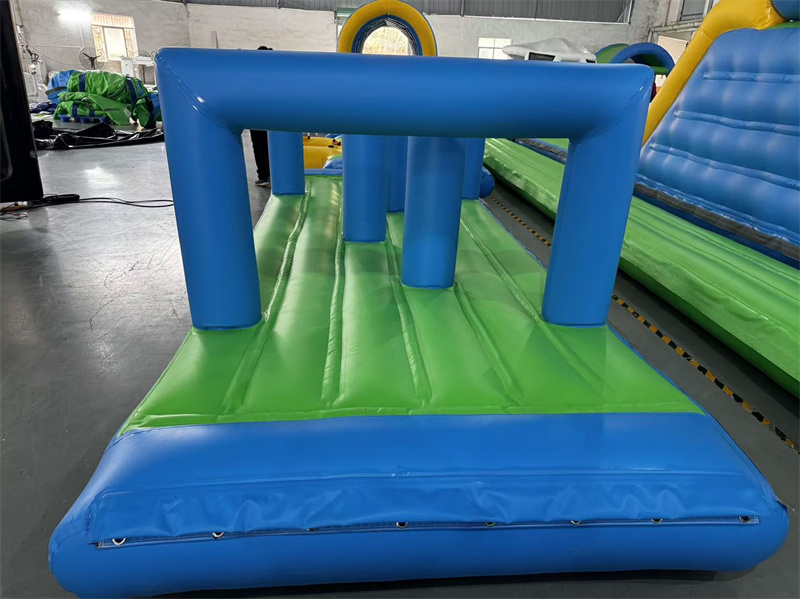

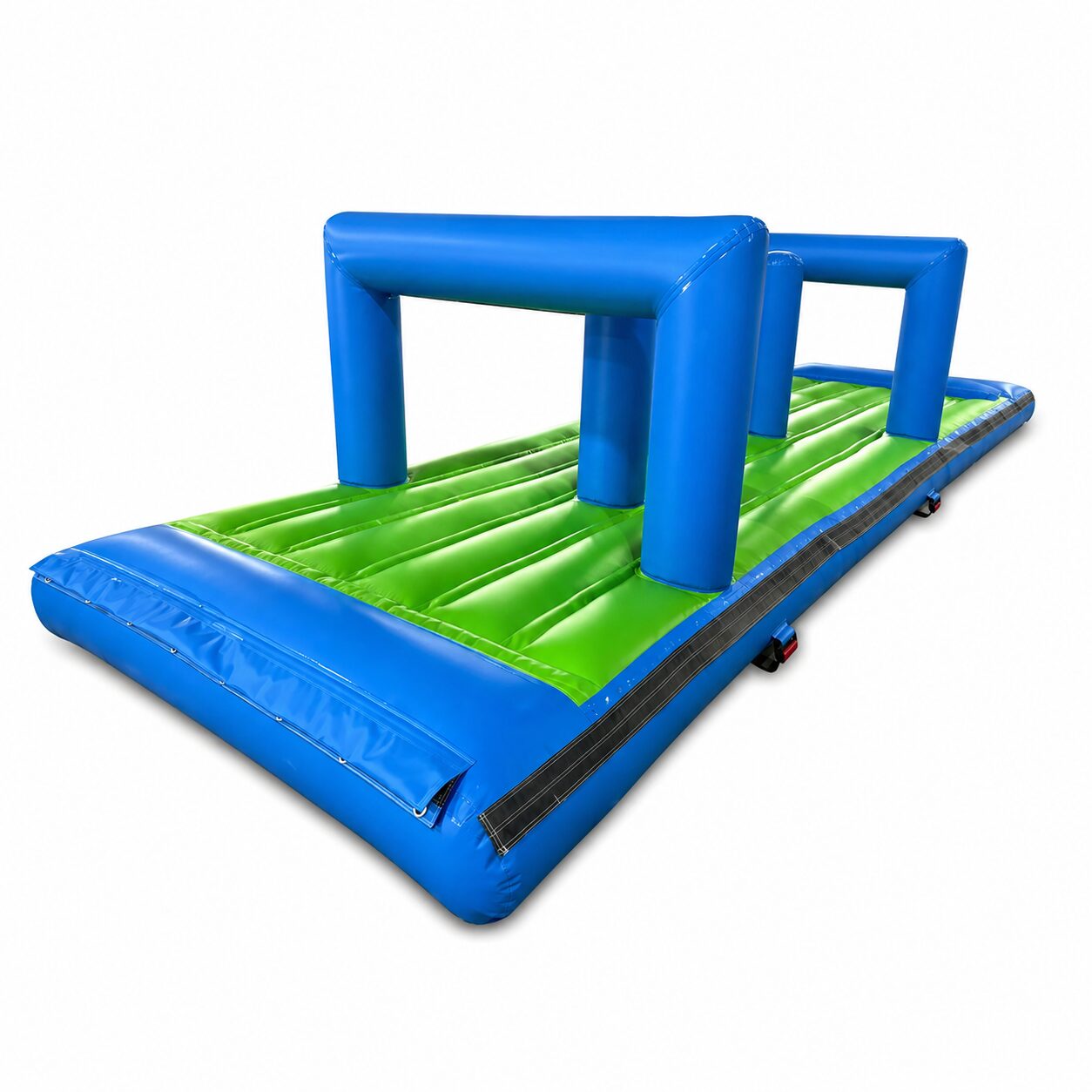

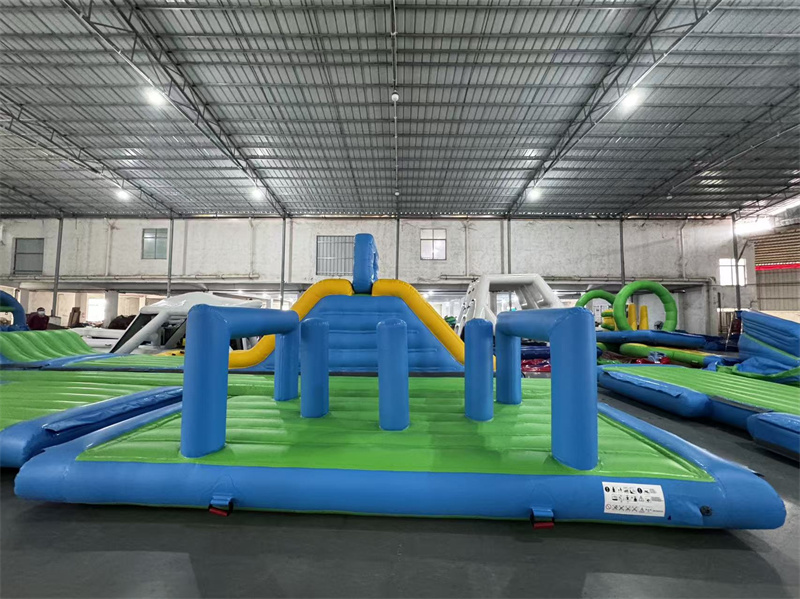

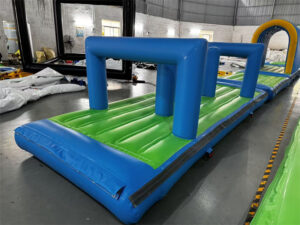

The hurdle module is a classic obstacle for any modular inflatable water park. It requires users to jump over a series of inflated barriers while running along the course, testing their agility, rhythm, and stamina. This module is a staple in competitive challenge zones and TV-show-style obstacle courses.
This module is manufactured from 0.9mm commercial-grade PVC tarpaulin with reinforced seams and anti-slip surfaces on the running base. Hurdle barriers are inflated as part of the module or as separate attachments, depending on configuration.
Key Features at a Glance:
| Feature | Specification |
|---|---|
| Module Type | Jump-Over Obstacle |
| Material | 0.9mm – 1.2mm Reinforced PVC Tarpaulin |
| Surface | Anti-slip textured running base |
| Dimensions | Customizable (Standard: 6m × 2m, 4 hurdles) |
| Hurdle Height | Standard 0.5m – 0.8m (customizable) |
| Hurdle Count | 3-6 per module (customizable) |
| User Capacity | 1-2 users simultaneously |
| Application | Lakes, oceans, pools, resorts |
| Certification | EN ISO 25649 |
Why Choose This Hurdle for Your Water Park
-
Commercial-Grade Durability
Built with 0.9mm reinforced PVC and hot-air welded seams. Resists UV, saltwater, and daily wear from high visitor traffic. -
Adjustable Difficulty
Hurdle height and spacing can be customized for different age groups — lower for children, higher for adults and competitive courses. -
Safety-Focused Design
Anti-slip textured running base provides secure footing. Hurdle barriers are designed to collapse under excessive force, reducing injury risk. EN ISO 25649 compliant. -
High Entertainment Value
Hurdles are spectator-friendly and encourage friendly competition. Perfect for timed challenges and race events. -
Modular Compatibility
Standard connection points allow easy integration with other modules — place between a balance beam and a log roll for a complete challenge sequence. -
Custom Options Available
Number of hurdles, hurdle height, spacing, color, and branding can be customized.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | 0.9mm PVC tarpaulin (1.2mm optional) |
| Surface (Base) | Anti-slip embossed texture |
| Hurdle Type | Inflatable barrier (collapsible design) |
| Welding | High-frequency hot air welding |
| Standard Size | 6m (L) × 2m (W) with 4 hurdles |
| Hurdle Height | 0.5m – 0.8m (customizable) |
| Hurdle Spacing | 1.2m – 1.5m (customizable) |
| Custom Size | Available upon request |
| Color | Customizable |
| Logo Printing | Custom branding available |
| Anchoring Points | 4-6 reinforced D-rings |
| Certification | EN ISO 25649 |
Applications
This hurdle module is suitable for:
-
Inflatable water park obstacle courses
-
Competitive challenge zones (timed races)
-
Resort lake attractions
-
Youth and adult activity areas
-
TV-show-style obstacle courses
-
Training facilities for adventure sports
How to Combine with Other Modules
The hurdle module is often placed in the middle of an obstacle sequence. Recommended combinations:
| Layout Type | Suggested Module Combination |
|---|---|
| Small Agility Course | Balance Beam → Hurdle → Slide |
| Medium Challenge Zone | Climbing Tower → Hurdle → Log Roll → Trampoline |
| Competitive Race Course | Start Platform → Hurdle → Balance Beam → Monkey Bars → Slide |
| Large Commercial Park | Action Tower → Hurdle → Log Roll → Curve → Monkey Bars → Launch Pad |
Customization Options
We offer full customization for this hurdle module:
-
Number of Hurdles: 3, 4, 5, 6, or custom count
-
Hurdle Height: Adjust from 0.3m (kids) to 1.0m (advanced)
-
Hurdle Spacing: Closer for faster pace, wider for longer stride
-
Base Length: Extend for more running room between hurdles
-
Color: Match your brand or park theme
-
Logo: Add your company logo or park name
Frequently Asked Questions
Q: What is the standard configuration for this hurdle module?
A: Standard is 6m length with 4 hurdles at 0.6m height. Custom configurations available.
Q: Is this hurdle suitable for children?
A: Yes. We offer lower hurdle heights (0.3m – 0.4m) and closer spacing for children’s courses.
Q: Can the hurdles be removed or adjusted?
A: Hurdles are fixed in the standard design. For adjustable configurations, please contact us for custom engineering.
Q: Are the hurdles safe if someone falls?
A: Yes. The inflatable barriers are designed to collapse under excessive force, reducing impact and injury risk.
Q: How many users can use the hurdle module at once?
A: Designed for 1 user at a time for safety. For race courses, install two parallel hurdle lanes.
Q: Does it meet safety standards?
A: Yes. All modules are manufactured according to EN ISO 25649 safety standards for floating leisure articles.
Q: What is the recommended water depth?
A: Minimum 1.2m (4 ft) recommended for safe use.
